SSQ4004
Just
ex Shipping
    Delivery time:5-7 days
Add to cart
  • Description

OUT OF STOCK

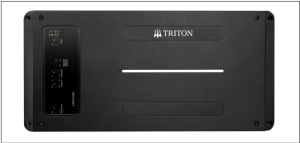

4 Channel Class D Amplifier

    SPECIFICATIONS

  • Power RMS 2Ω @ 14.4V: 4 x 120W
  • Power RMS 4Ω @ 14.4V: 4 x 80W
  • Bridge Power 4Ω @ 14.4V: 4 x 80W
  • THD+N @ Nominal Power: <1%
  • Frequency Response: 10Hz ~ 50kHz
  • SNR: <80dB(1W)
  • Dimensions: 261*170*48mm



  • Input Sensitivity: 0.2V to 4.5V
  • Damping Factor: 60(4Ω)
  • Operating Voltage: 14.4V
  • High Pass Filter: 50Hz-500Hz(CH1,CH2), 80Hz-3.3KHz(CH3,CH4)
  • Low Pass Filter: 50Hz-500Hz(CH1,CH2), 80Hz-3.3KHz(CH3,CH4)
  • Total Efficiency: 80%
  • Max Current Draw (A): 28
  • Music Current Draw (A): 23
