SSQ8001
ex Shipping
    Delivery time:5-7 days
Add to cart
  • Description

OUT OF STOCK

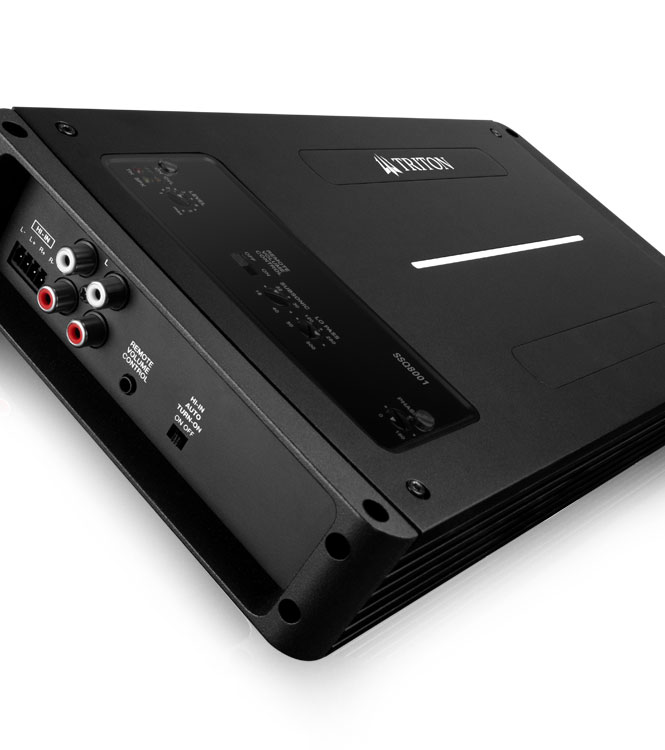

Mono Channel Class D Amplifier

    SPECIFICATIONS

  • Power RMS 1Ω @ 14.4V: <800W
  • Power RMS 2Ω @ 14.4V: <600W
  • Power RMS 4Ω @ 14.4V: <400W
  • THD+N @ Nominal Power: <1%
  • Frequency Response: 20Hz ~ 450Hz
  • SNR: <78dB(1W)
  • Dimensions: 321*170*48mm



  • Input Sensitivity: 0.22-5.2(±10%)
  • Damping Factor: 100(4Ω)
  • Operating Voltage: 14.4V
  • High Pass Filter: 20-35Hz(±3)
  • Low Pass Filter: 50-450Hz(±10)
  • Total Efficiency: 82%(4Ω)
  • Max Current Draw (A): 80
  • Music Current Draw (A): 55
