SQ40044
Only
ex Shipping
    Delivery time:5-7 days
Add to cart
  • Description

OUT OF STOCK

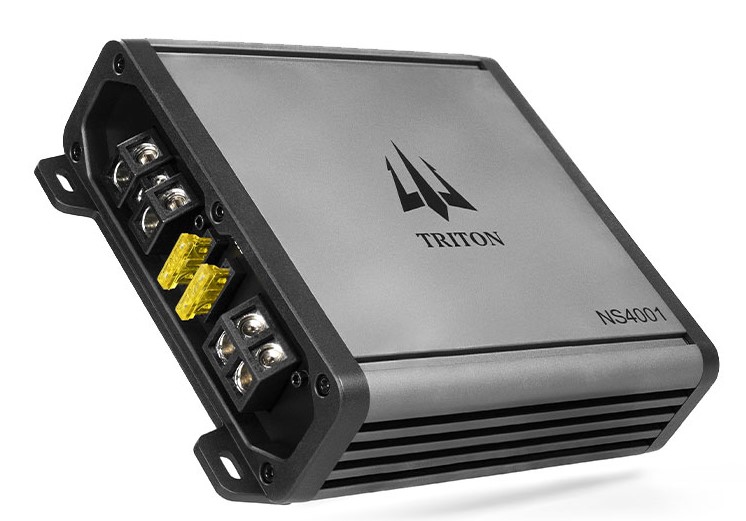

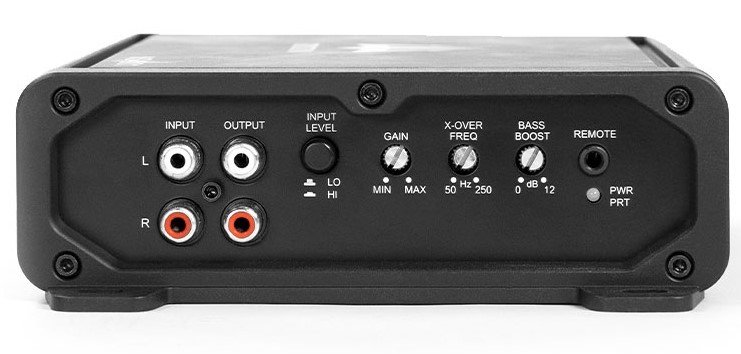

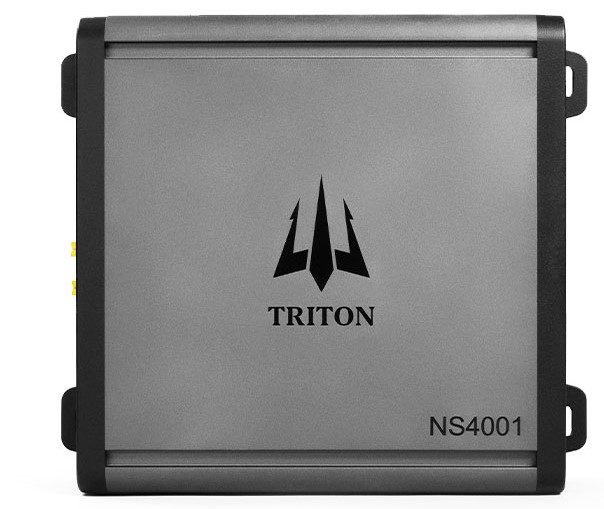

4 Channel Class D Amplifier

    SPECIFICATIONS

  • Power RMS 2Ω @ 14.4V: 4 x 100W
  • Power RMS 4Ω @ 14.4V: 4 x 55W
  • Bridge Power 4Ω @ 14.4V: 2 x 200W
  • Bridge Power 8Ω @ 14.4V: 2 x 110W
  • THD+N @ Nominal Power: <1%
  • Frequency Response: 5Hz ~ 20kHz
  • SNR: 88dB
  • Dimensions: 5-3/16" W x 4-1/2" L x 1-7/8" H



  • Input Sensitivity: 0.5V to 6V
  • Damping Factor: 100
  • Operating Voltage: 9V to 16V
  • High Pass Filter: 45Hz to 850Hz
  • Low Pass Filter: 45Hz to 850Hz
  • Total Efficiency: 79%
  • Max Current Draw (A): 40
  • Music Current Draw (A): 20
