HDAF60
ex Shipping
    Delivery time:5-7 days
  • Description
  • More

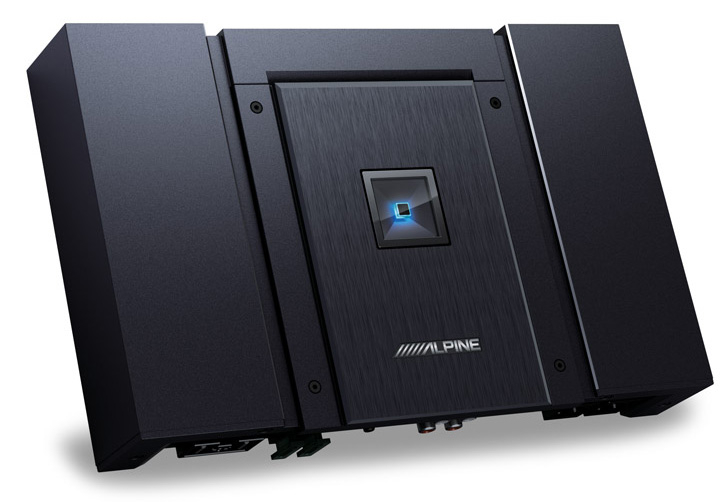

600W RMS Status Series Class-D 4-Channel Car Amplifier

• 100 watts x 4 channel @ 4 ohms
• 150 watts x 4 channel @ 2 ohms
• Bridged: 300 watts x 2 channel @ 4 ohms
• Total RMS Power: 600 watts

  • Class D 2 ohms Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 channel
    • 2 ohms: 150 watts x 4 channel
    • Bridged, 4 ohms: 300 watts x 2 channel
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • Hi-Res Audio certified
  • Advanced digital design
  • Copper plated chassis and black circuit board
  • Blue Power/Protect indicator light
  • Wired remote bass control available Alpine RUX-KNOB or Alpine RUX-KNOB.2 (sold separately)
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: .2 - .4 volts
    • High level: .5 - 10 volts
  • Frequency Response: 10 - 60000 Hz
  • Total Harmonic Distortion (THD): .2%
  • Signal to Noise Ratio: 106 dB
  • Variable high-pass filter: 50 - 400 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 400 Hz, 12 dB/octave
  • Fuse Rating: 70
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11-7/16" W x 7-1/2" L x 2-1/8" H
