HDAV90
ex Shipping
    Delivery time:5-7 days
  • Description

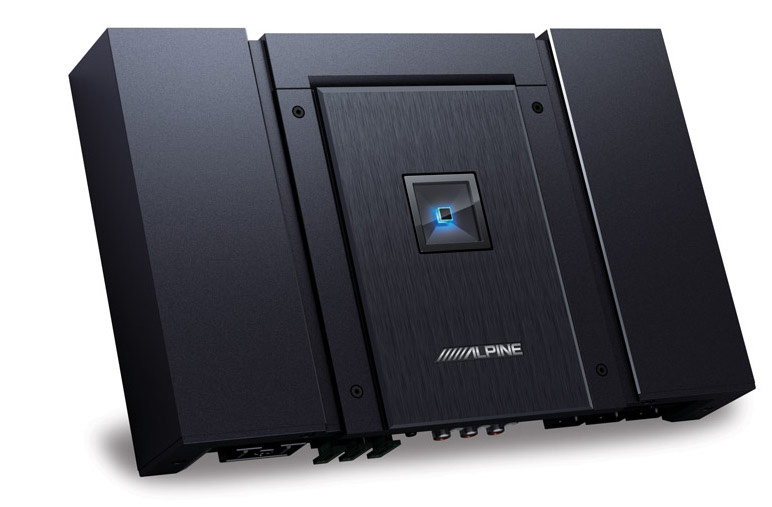

900W RMS Status Series Class-D 5-Channel Car Amplifier

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohms
• 100 watts x 4 channel + 500 watts x 1 channel @ 2 ohms
• Bridged: 200 watts x 2 channel @ 4 ohms + 500 watts x 1 channel @ 2 ohms

  • Class D 2 ohms Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 4 channel + 300 watts x 1 channel
    • 2 ohms: 100 watts x 4 channel + 500 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohms + 500 watts x 1 channel @ 2 ohms
  • Total power output: 75 watts
  • Pulse Width Modulated MOSFET power supply
  • Channel Design: 5/4/3 Channel
  • Class-D amplification circuit

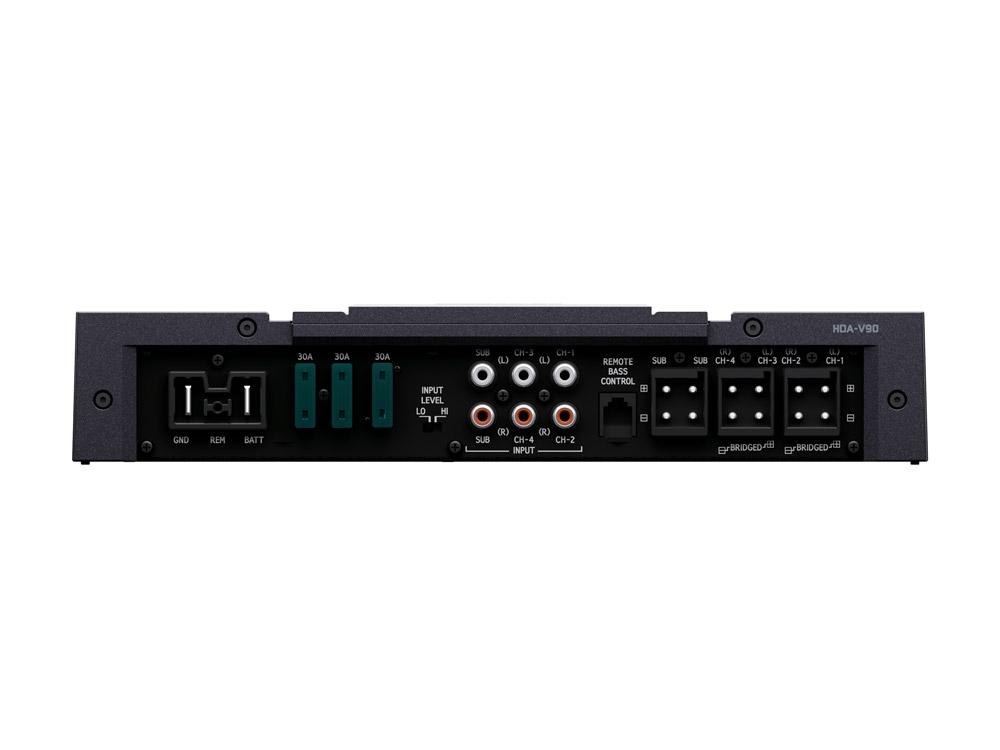

  • Power supply and speaker channel connectors
  • Copper-plated chassis

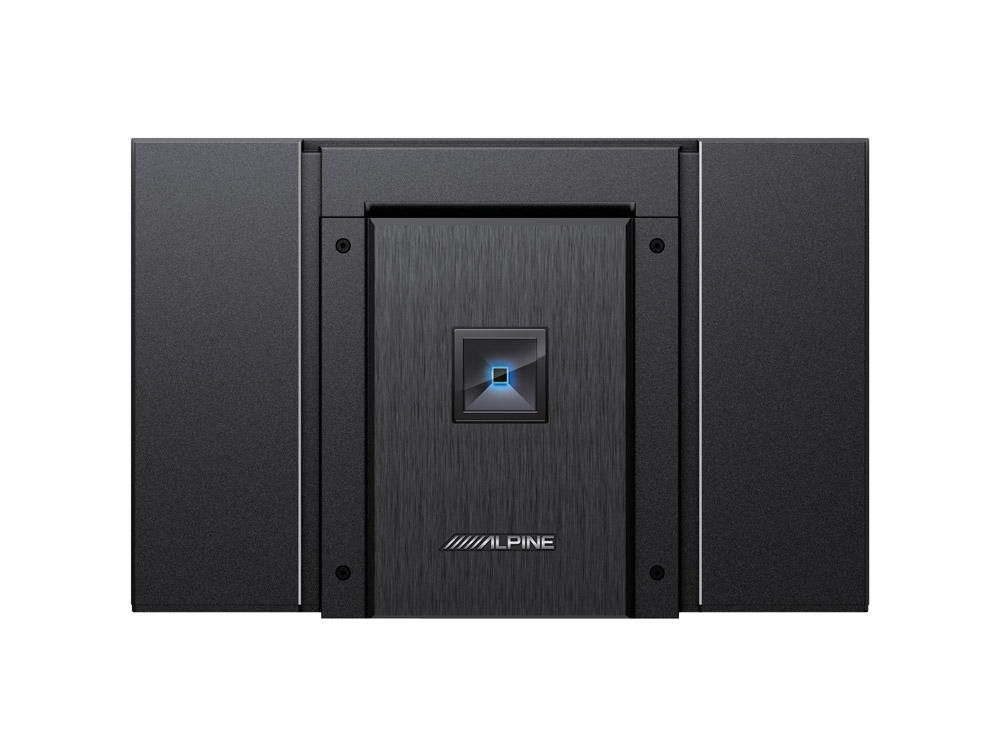

  • Top control panel (below top cover)
  • Black circuit board
  • Non-Shutdown design
  • Thermal protection
  • One-sided terminal
  • Blue Power/Protect indicator light
  • Speaker-level (high-level) inputs
  • Wired remote bass level control available Alpine RUX-KNOB.2 (sold separately)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.4 - 10 volts
    • High level: 0.5 - 10 volts
  • Frequency Response: 8 - 60000 Hz
  • Total Harmonic Distortion (THD): .02%
  • Signal to Noise Ratio: 104 dB
  • Variable high-pass filter: 50 - 400 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 400 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 90
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11-7/16" W x 7-1/2" L x 2-1/8" H
