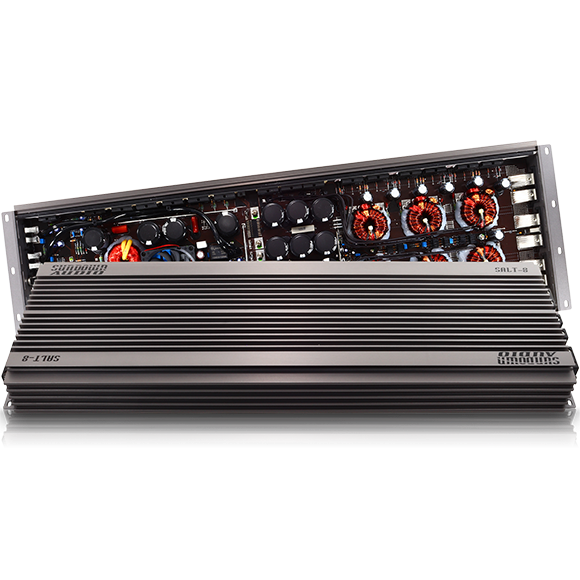

8000 Watt Cont. @ 1 OHM, Mono Class D Amplifier.
Specifications
- Input Sensitivity : 6V - 0.2V
- 16000 x 1 @ 2 ohms RMS Linked
- 8000 x 1 @ 1 ohms RMS Mono
- 4000 x 1 @ 2 ohms RMS Mono
- 2000 x 1 @ 4 ohms RMS Mono
- Variable Subsonic Crossover Filter : 10HZ - 50HZ
- Variable Low Pass Filter : 35HZ - 250HZ
- Bass Boost @ 45Hz 0-9dB
- Efficiency : 90% <
- Signal / Noise Ratio : 90DB <
- Damping Factor : 400 <
- Frequency Response : 10 Hz – 250 HZ
- Phase Shift Control 0-180 Degrees
- Tested Voltage & THD : 12.8V & Less Than 1% THD
- Operation Voltage : DC 9V - 15.5V Power Input
- Recommended Fuse : 800 Amps
- Dimensions : 30.71” L x 10.08” W x 2.96” H
Features
- Digital Class-D Linkable Mono Block Amplifier
- Dual MOS-FET PWM Power Supply
- 1 Ohm Stable Load
- 24 dB/Octave – Variable Low Pass Filter
- 24 dB/Octave – Variable Subsonic Filter
- 9 dB/Octave – Variable Bass Boost
- 180° Variable Phase Shift
- 4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)
- Wired Remote Control with Voltage & Temperature Display and Clipping Indicator
