SDX 100.4
ex Shipping
    Delivery time:5-7 Days
  • Description
  • More

Moderate power, tiny size, but at the top-end of Full-Range Class-D fidelity. The controls will have a removable cover that bolts down on top of them. The overall case is a big chunk of cast aluminum to keep temperatures in check!

Specifications

  • 4-Channel Class-D Amplifier
  • 4 x 100W at 4 Ohm
  • 4 x 155W at 2 Ohm
  • 2 x 310W at 4 Ohm Bridged
  • S/N: >92dB
  • Cast Aluminum Heat Sync
  • Water Resistant
  • Highpass / Lowpass / Bandpass Filter
  • Gain Adjustment
  • Suitable for vehicles with start / stop function
  • Dimensions in mm (LxWxH): 226 x 154 x 53 mm

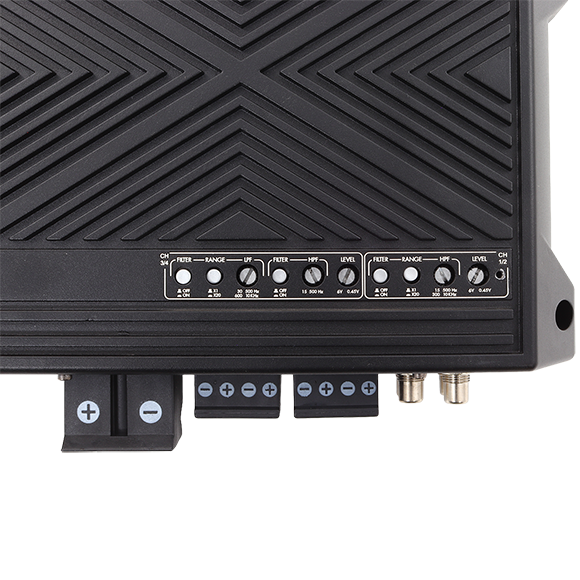

Note: Unscrew the badge using an allen key to access audio settings.

  • Features

    • High Efficiency Digital Multi-Channel Design
    • 12dB/Octave-Variable High Pass Filter
    • 12dB/Octave-Variable Low Pass Filter
    • DC Auto sense feature
    • 4 Way Protection Circuit (Thermal,
    • Voltage Speaker short and DC Offset)
    • Optional Wired Remote Control
