Moderate power, tiny size, but at the top-end of Full-Range Class-D fidelity. The controls will have a removable cover that bolts down on top of them. The overall case is a big chunk of cast aluminum to keep temperatures in check!
Specifications
- 2 Channel Class D Amplifier
- 2 x 90W @ 4 Ohm
- 2 x 120W @ 2 Ohm
- Bridge 4 Ohm: 350W x 1 Ch
- S/N: >88dB
- Cast Aluminum Heat Sync
- Water Resistant
- Highpass / Lowpass / Bandpass Filter
- Gain Adjustment
- Suitable for vehicles with start / stop function
- Dimensions in Inch (L x W x H): 5.83" x 3.43" x 1.73"

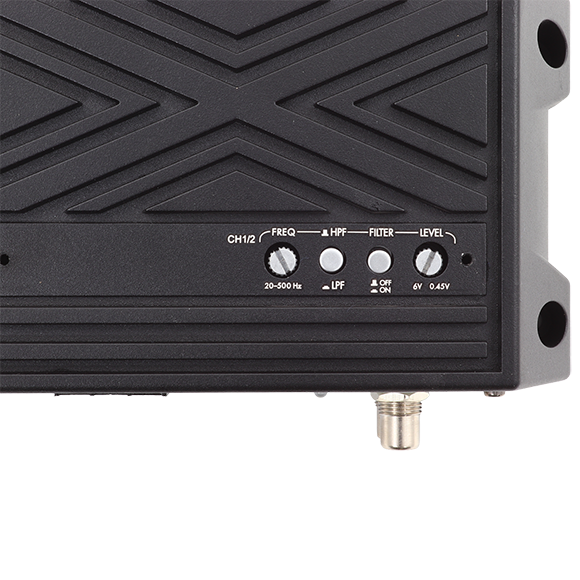

Note: Unscrew the badge using an allen key to access audio settings.
Features
- High Efficiency Digital Multi-Channel Design
- 12dB/Octave-Variable High Pass Filter
- 12dB/Octave-Variable Low Pass Filter
- DC Auto sense feature
- 4 Way Protection Circuit (Thermal,
- Voltage Speaker short and DC Offset)
- Optional Wired Remote Control
