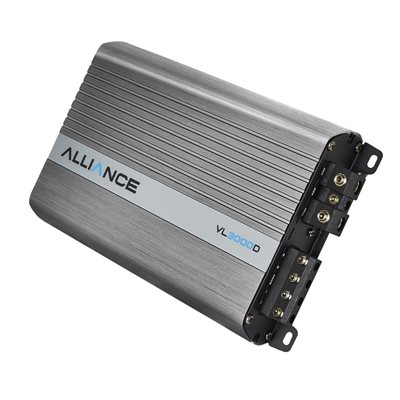

Alliance 1x750 Class D Amplifier
VL3000D
Features
- Small Footprint Class D Amplifier
- Utilizes Class D Technology
- 0-12dB Variable Bass Boost
- Includes Sub Level Remote
- 80% more efficient than traditional Class A/B amplifiers
Specs
- Peak Power: 3000W
- Power RMS 1Ω @ 14.4V: 1 x 750 Watts
- Power RMS 2Ω @ 14.4V: 1 x 375 Watts
- Power RMS 4Ω @ 14.4V: 1 x 187.5 Watts
- THD+N @ Nominal Power: 1 x 750 Watts 1Ω
- Frequency Response: 15Hz ~ 250Hz
- SNR: 92dB
- Input Sensitivity: 0.2V to 9V
- Damping Factor: 150
- Operating Voltage: 9V to 16V
- High Pass Filter: 10Hz to 50Hz
- Low Pass Filter: 50Hz to 220Hz
- Total Efficiency: 750W
- Max Current Draw (A): 85
- Music Current Draw (A): 45
- Fuse Recommendation: 60A
Dimensions
- Size (W x L x H): 5.8” x 7.5” x 1.9”
What’s in the box
- Alliance Monoblock 3,000W Class D Amplifier
