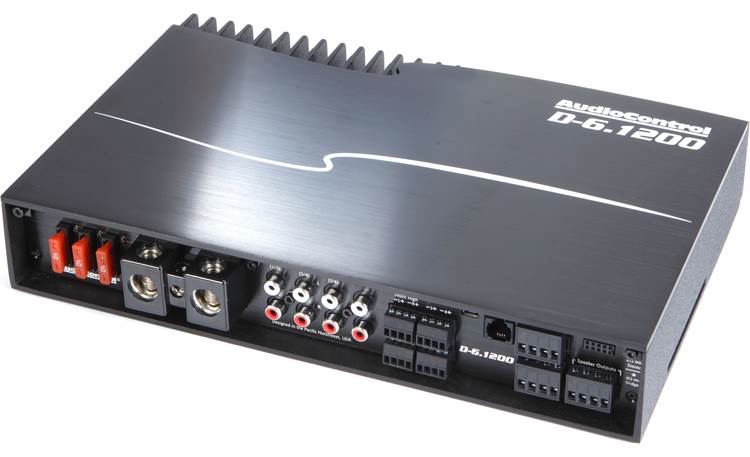

Amplifier and DSP in one package
Two keys to unlocking great sound in a car stereo system are serious power and extensive control — and this amp's got them both. For power, AudioControl's D-6.1200 6-channel amplifier generates 125 watts RMS per channel — 200 watts per channel at 2 ohms — so it'll drive even the most demanding aftermarket speakers with plenty of headroom to spare.
Whatever the job, this amp is ready
You can also use the D-6.1200 to power a pair of 2-way components with four of its channels, while delivering 400 watts RMS to a subwoofer from its 5th and 6th channels bridged together. Or, if you're into pure bass power, you can put this amp in 3-channel mode to power three subs with 400 watts RMS each, 1200 watts RMS total.
Smart-User DSP tuning software on a laptop (DM-810 version shown)
Computer-controlled digital signal processing
You won't find any knobs on the D-6.1200 — you make adjustments and save settings via your laptop (PC or Mac). AudioControl's Smart-User DSP software package includes 12 or 24 dB/octave Linkwitz-Riley crossovers, 30-band equalizers, parametric filters, time delay/alignment for inputs and outputs, phase correction, AccuBass™ bass correction, and real-time analyzers (RTA) for the inputs and outputs so you can visually confirm the improvements in the sound.
It's made to work with a factory radio
Eight active speaker-level inputs allow you to connect this amp to almost any factory system, even ones that have separate pre-filtered, time-aligned, and amplified signals going to separate factory speakers and tweeters. The D-6.1200 sums them into one smooth, unified signal for you to balance, align, and tune for your high-performance speakers. AudioControl's Great Turn On (GTO™) signal-sensing circuitry turns the amp on automatically whenever it senses an incoming signal, so you won't have to run a separate turn-on lead back to the receiver.
Convenient features
Onboard LEDs indicate optimized signal flow for inputs and outputs, plus give you a warning when a source is too loud and causing distortion. An optional ACR-3 wired remote controller lets you select sources, control levels, and recall presets from your front seat. An optional Bluetooth® adapter lets you stream music and control the digital processing wirelessly from your compatible portable device.

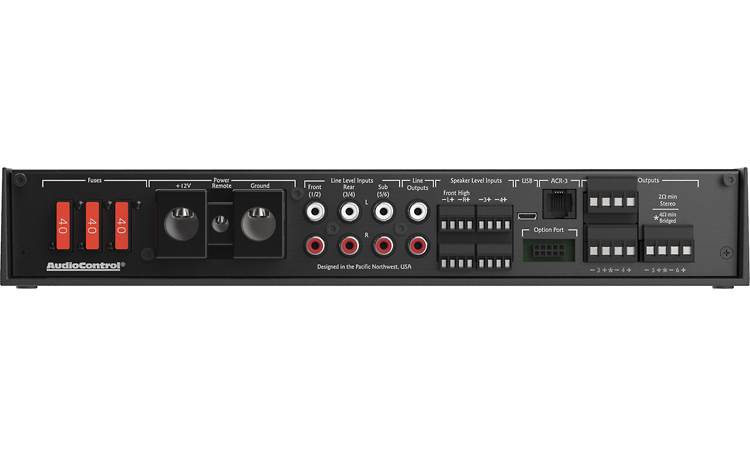

AudioControl D-6.1200 connection panel
