HDAM80
ex Shipping
    Delivery time:5-7 Days
  • Description
  • More

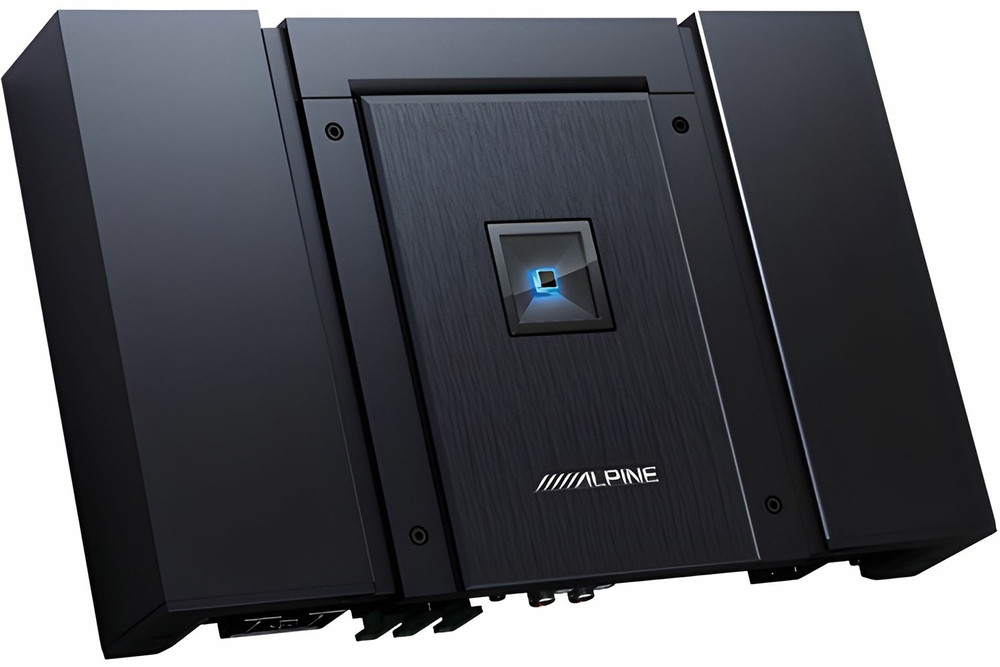

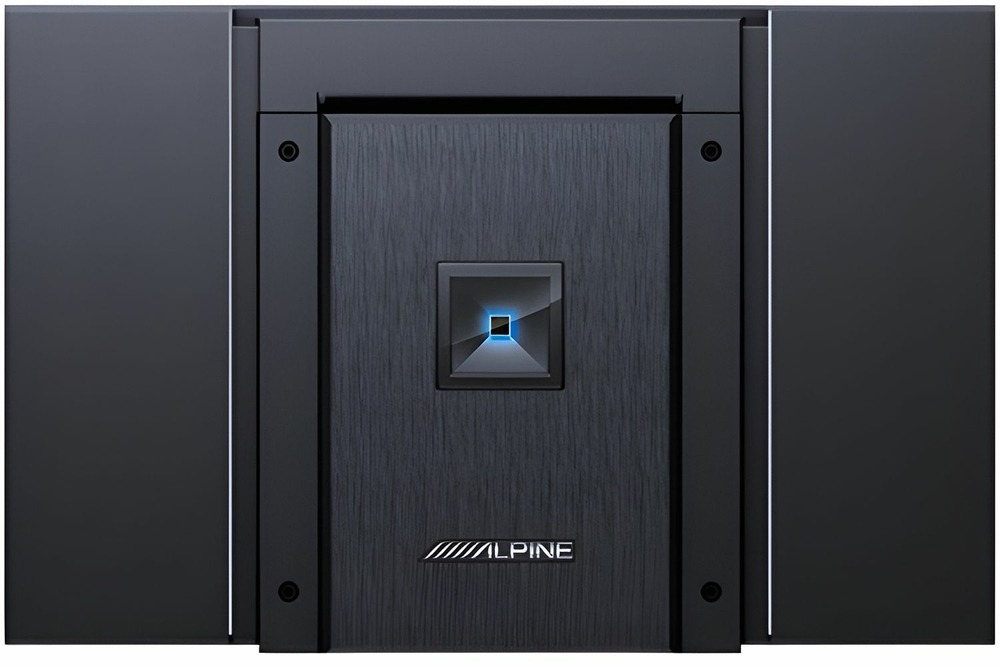

800W RMS Status Series Class-D Monoblock Car Amplifier

• 500 watts x 1 channel @ 4 ohms
• 800 watts x 1 channel @ 2 ohms
• Total RMS Power: 800 watts
• Class D 2 ohms Stable Monoblock Amplifier



  • Class D 2 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 500 watts x 1 channel
    • 2 ohms: 800 watts x 1 channel
  • Total RMS power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • Advanced digital design
  • Copper plated chassis and black circuit board
  • Blue Power/Protect indicator light
  • Wired remote bass control available Alpine RUX-KNOB or Alpine RUX-KNOB.2 (sold separately)

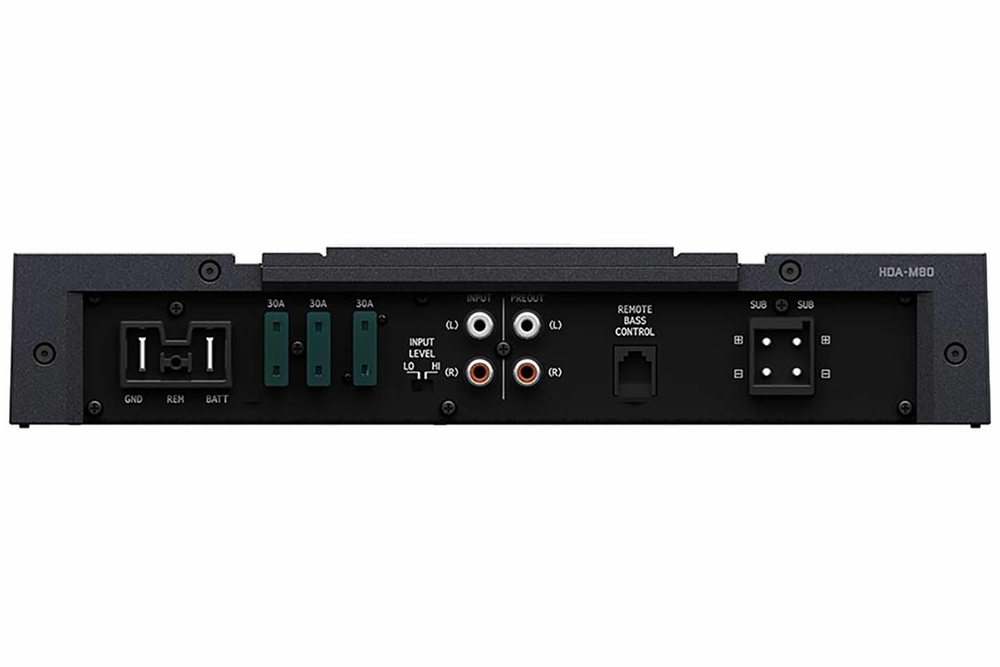

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: .1 - .4 volts
  • Frequency Response: 8 - 400 Hz
  • Total Harmonic Distortion (THD): .02%
  • Signal to Noise Ratio: 107 dB
  • Variable low-pass filter: 50 - 400 Hz @ 24 dB/octave
  • Subsonic filter: 8 - 40 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 90
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11-7/16" W x 7-1/2" L x 2-1/8" H
