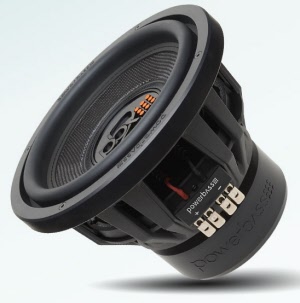

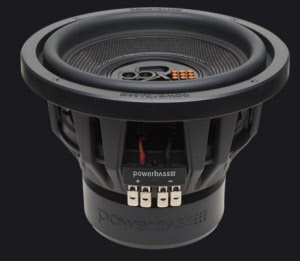

2XL-1240DS 12" Subwoofer

  • 12" Dual 4-Ohm Subwoofer
  • 650 watt RMS/ 1300 Watts Max
  • Woven Glass Fiber Cone With Pressed Kraft Paper Reinforcement
  • Nitrile Butadiene Rubber (NBR) Surround
  • 2.5" Vented BKSV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Non Resonance DDC Coated Cast Aluminum Basket
  • XTRA XTRA Large Double Stacked Motor Structures
  • Square Spring Loaded Nickel Plated Input Terminals
  • Optimally Designed for Both Sealed or Ported Enclosures

2XL-1240DS 12" PREMIUM SUBWOOFERS

Our new 2XLDS Subwoofers have been completely redesigned with a new custom cast aluminum basket and the motor moved to the outside of the basket in a more standard style to allow for lower frequency response and increased power handling, providing audiophile sound quality at Xtreme sound levels.

Featuring a new NBR Nitrile Butadiene Rubber surround for increased linear accuracy and a proprietary Woven Glass Fiber Kraft Reinforced cone the 2XL series is built to perform. The custom cast aluminum basket provides perimeter venting to assist in cooling the newly redesigned 2.5” Black Kapton (BKSV) voice coil and inverted motor structure.

Specifications

  • Subwoofer Frequency Range: 28 Hz - 500 Hz
  • Inputs: Dual Voice Coil
  • Fs: 36.6 Hz
  • Cutout Diameter: 11"
  • BL: 14.19
  • Nominal Impedance: Dual 4-ohm
  • Voice Coil Size: 2.5 in
  • Material: Woven Glass Fiber and Kraft Paper
  • Magnet Size: 48 oz
  • Sensitivity (1W / 1M): 82 dB
  • Motor Structure: 48 oz
  • Mounting Depth: 7.75 in
  • Xmax: 10
  • Spl: 82
  • No: 0.095%
  • Qts: 0.752
  • Qes: 0.871
  • Qms: 5.509
  • Mms: 231.3 g
  • Cms: 74 uM/N
  • Vas: 15.03 Ltr
  • SD: 380.1
  • Test Impedance: 1.80-ohm
  • VC Impedance: 4-ohm + 4-ohm
  • Size: 10 in
  • Sensitivity: 82 dB
  • Frequency Response: 30 Hz -500 Hz
  • Voice Coil Size: 2.5 in
  • Power Handling (RMS/Peak): 600 / 1200 watts
